Automotive-Data-Logger

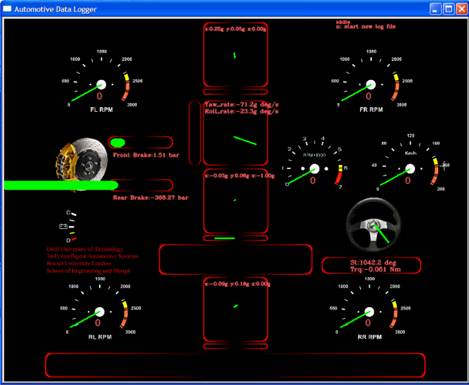

The code has been developed in C/C++. The automotive-data-logging (ADL) software in the notebook is responsible for communicating with the AVR and the NI-DAQ, capturing visual data from the webcams, synchronizing all the data together and storing them in the USB memory drive. The ADL utilizes the Open-Computer-Vision-Library (OpenCV)  for the image acquisition-processing from the 2 webcams and for the creation the graphical-user-interface (GUI). OpenCV is an open source computer vision library in C/C++, independent from the operating system and hardware, is optimized and is suitable for real time applications.

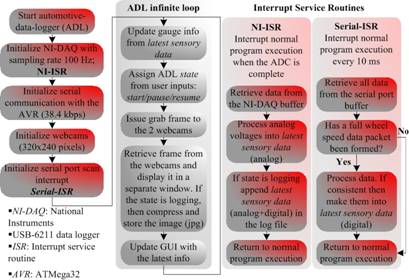

Automotive-data-logger (ADL) software flow diagram

Microsoft Visual Studio Solution

Open Computer Vision Library (OpenCV). Available: http://opencvlibrary.sourceforge.net

The fix the OpenCV libraries and dependencies for Visual Studio follow the instructions.

AVR Studio solution

WinAVR, Available: http://winavr.sourceforge.net/

AVR Studio: Integrated Development Environment, ATMEL Corporation, 10/2007. Available: http://www.atmel.com/dyn/products/tools_card.asp?tool_id=2725
