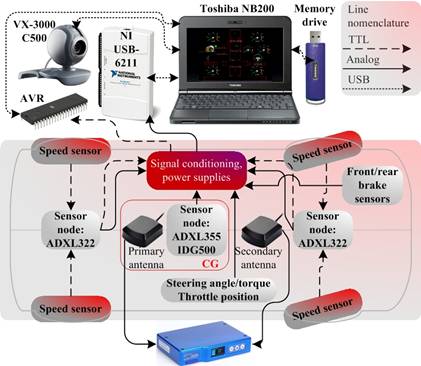

Rally vehicle sensory instrumentation architecture

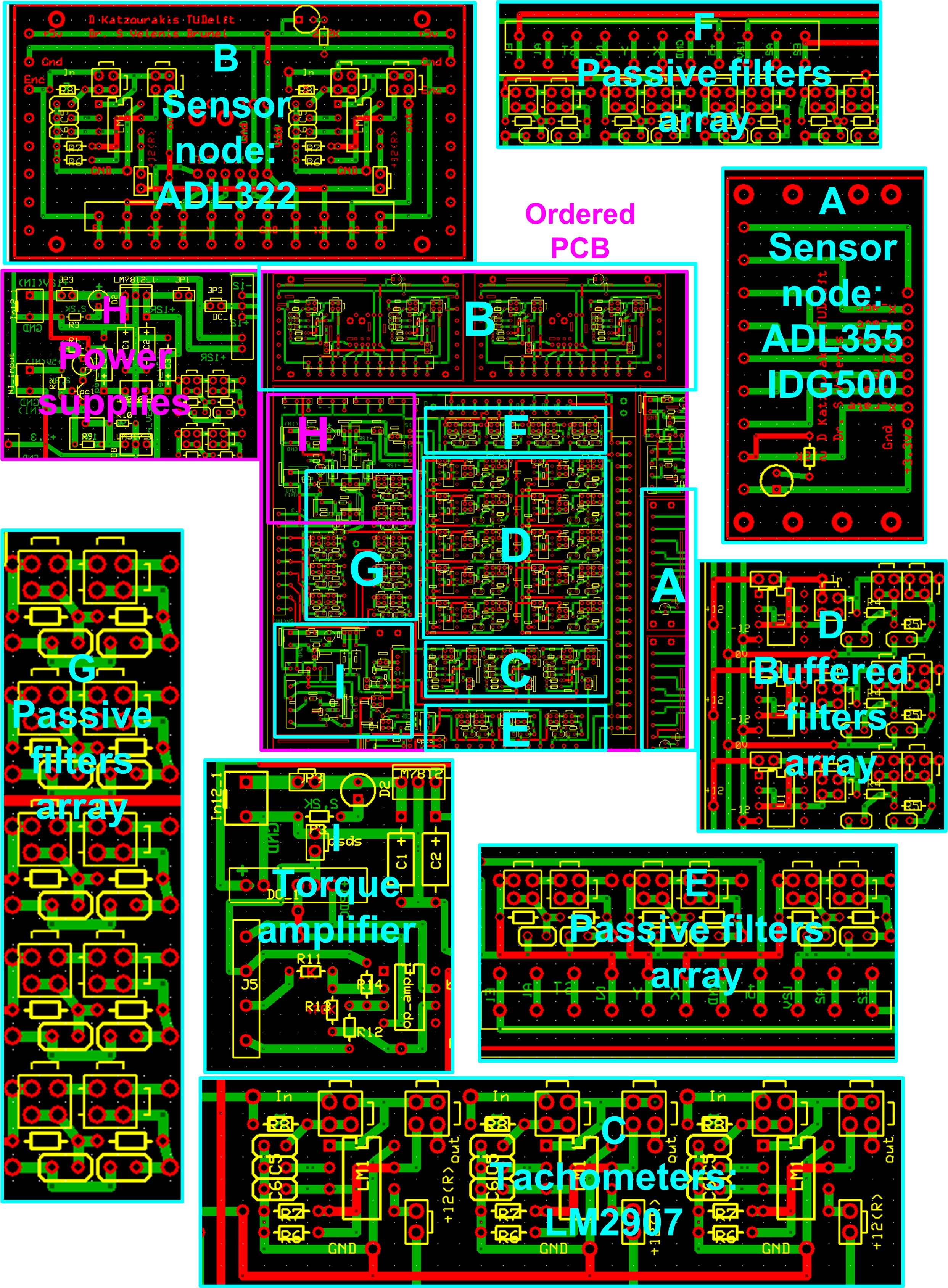

all smaller PCBs nodes augmented together (*.pdf)

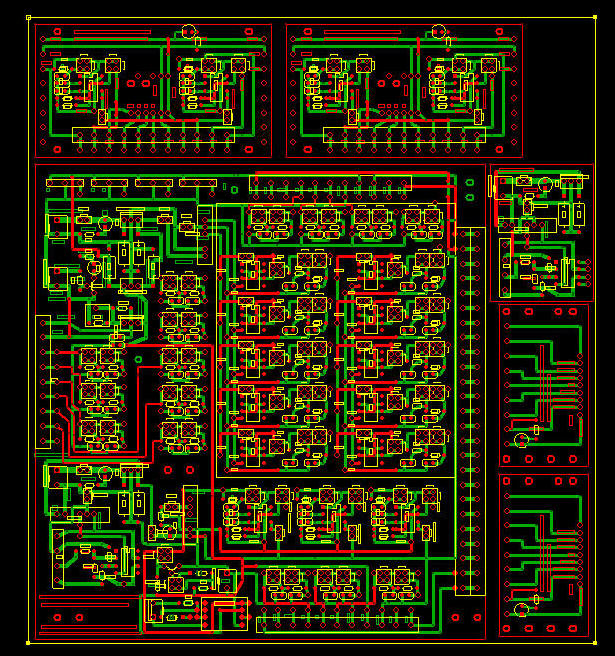

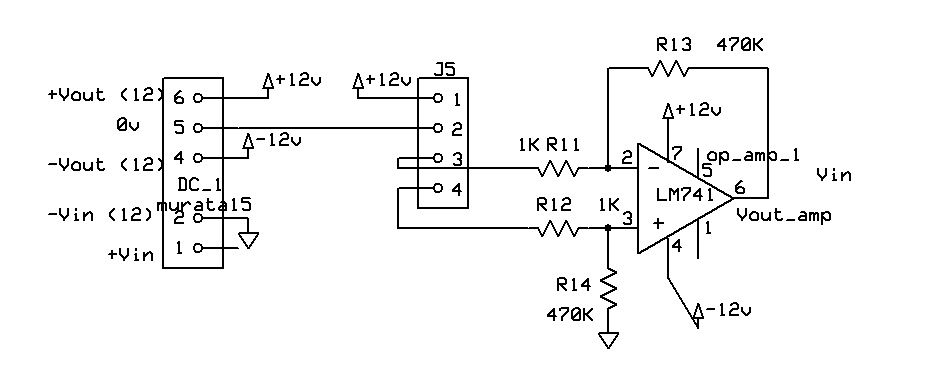

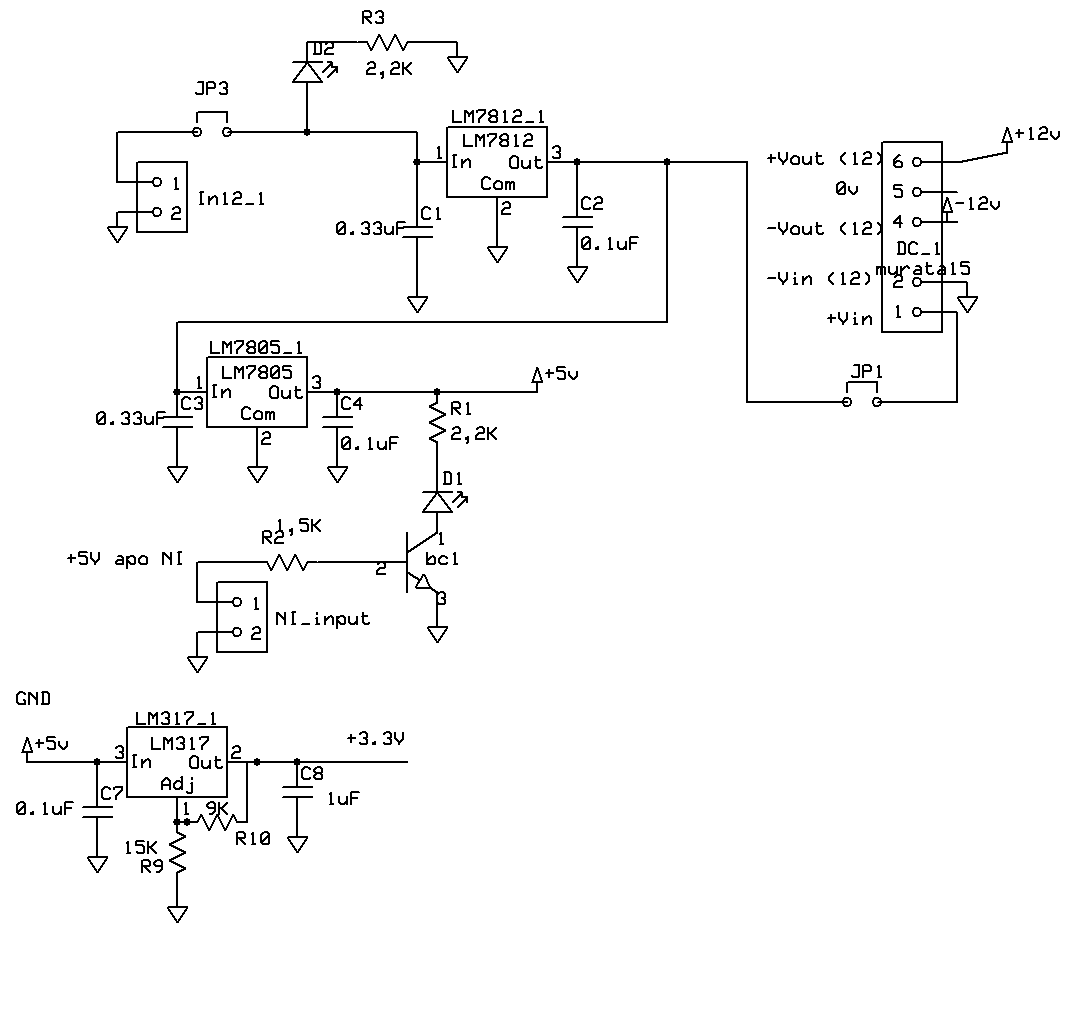

Central PCB components

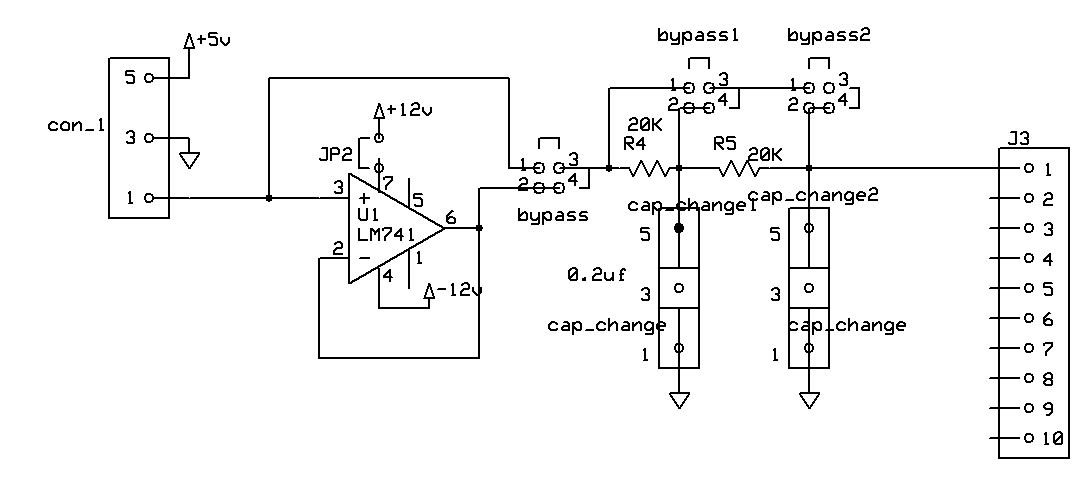

Buffered filter (formed into arrays). With the bypass header we can select the order of the filter trough jumpers.

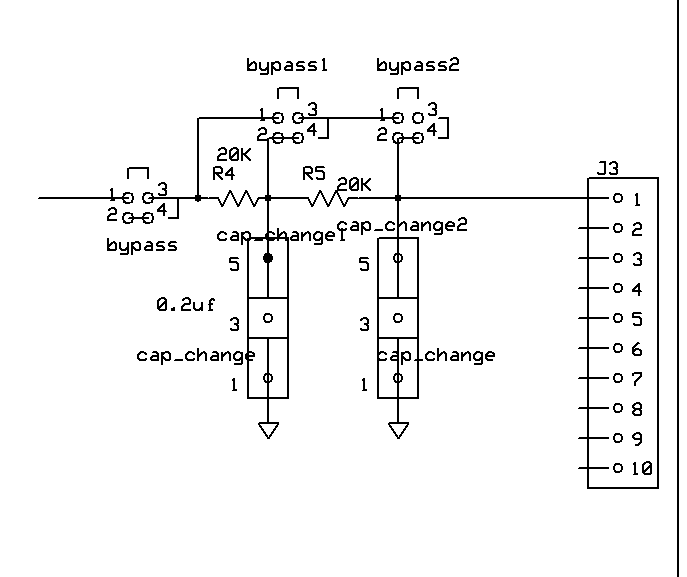

Passive filters (formed into arrays). With the bypass header we can select the order of the filter trough jumpers.

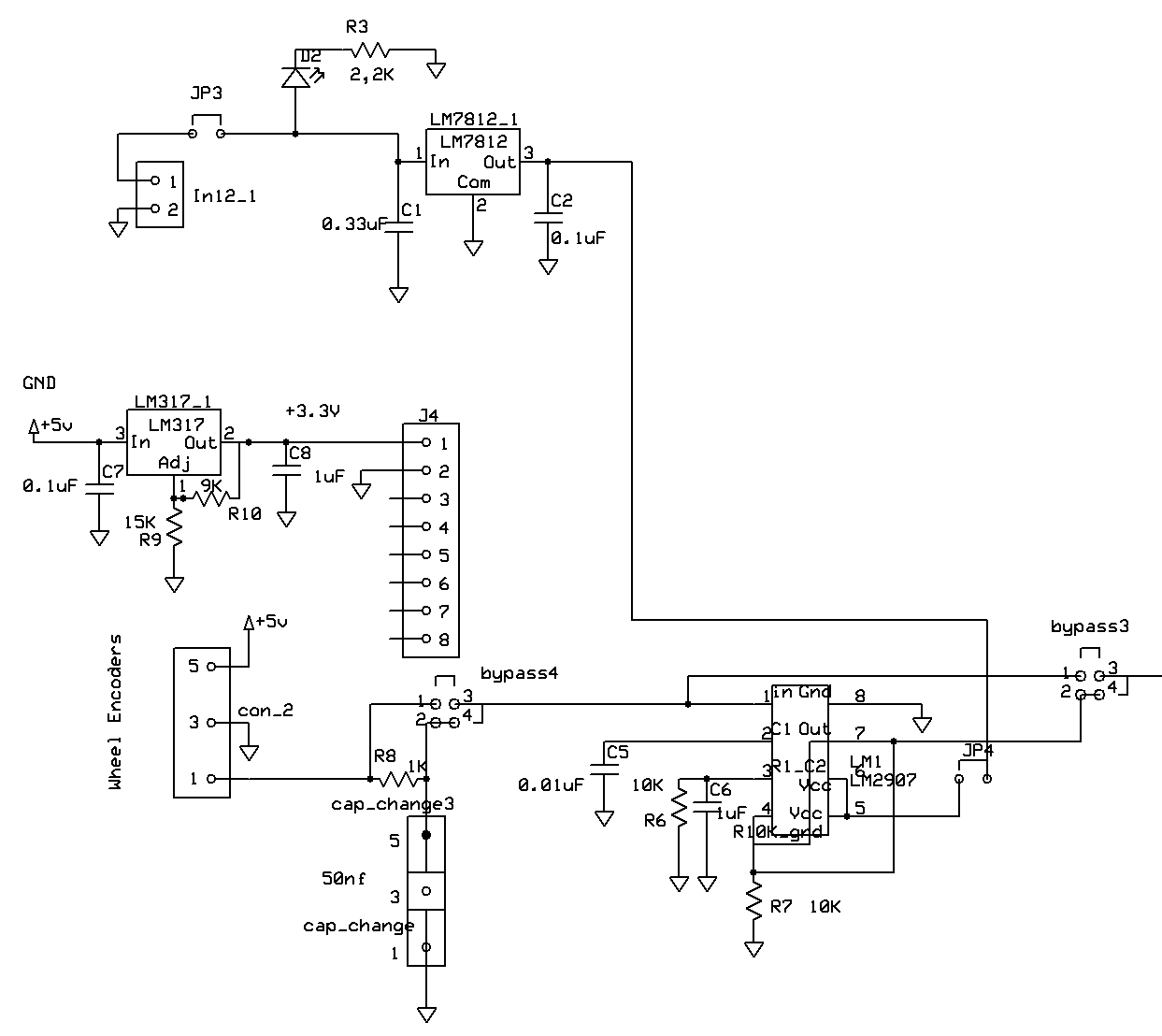

Tachometers (frequency to analog voltage) based on the LM2907 (formed into arrays). Not used at the final project.
|
|
